This lesson explores the use of Dinamica EGO as a simulation platform for land-use and cover change (LUCC) models. The goal is to calibrate, run and validate a LUCC model, in this case a simulation model of deforestation. You will need to go through 10 steps in order to complete the model, as depicted in the fig.1 . To facilitate this process, each one of these steps will be represented as a separate model. Although, all steps could be joined into a single model, for sake of simplicity we will keep them as separate models.

The study area with respect to Rondonia state and Brazil as illustrated in the fig.2:

Fig.2 The study area with respect to Rondonia state and Brazil (dark green is forest, light green deforested land, and brown non-forest vegetation)

The input dataset represents a region of Rondonia state, around the town of Ariquenes, in the Brazilian Amazon, fig.2. Open the maps 23267_1997.tif and 23267_2000.tif, located in \Guidebook_Dinamica_5\Database\LUCC_files using the Color Palette, “Amazon”. These maps correspond to a Landsat image (232/67) classified by PRODES (INPE, 2008) – Brazilian program for monitoring deforestation - for the years 1997 and 2000.

In this LUCC model, Dinamica EGO will use the 1997 map as the initial landscape and the 2000 map as the final, considering the landscape as a bi-dimensional array of land use types.


The landscape maps have the following classes; the null is represented by 0:

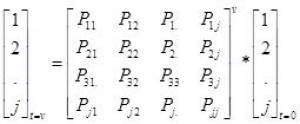

First, you need to calculate the historical transition matrices. The transition matrix describes a system that changes over discrete time increments, in which the value of any variable in a given time period is the sum of fixed percentages of values of all variables in the previous time step. The sum of fractions along the column of the transition matrix is equal to one. The diagonal line of the transition matrix need not to be specified since Dinamica EGO does not model the percentage of unchangeable cells, nor the transitions equal to zero. The transition rate can be passed to the LUCC model as a fixed parameter or be updated from model feedback.

(1)

The single-step matrix corresponds to a time period represented as a single time step, in turn the multiple-step matrix corresponds to a time step unit (year, month, day, etc) specified by dividing the time period by a number of time steps. For Dinamica EGO, time step can comprise any span of time, since time unit is only an external reference. A multiple-step transition matrix can only be derived from an Ergodic matrix, i.e. a matrix that has real number Eigen values and vectors.

The transition rates set the net quantity of changes, that is, the percentage of land that will change to another state (land use and cover attribute), and thus they are known as net rates, and denoted in percentage. In turn, gross rates are specified as an area unit, such as hectares or km² per unit of time. In the case that there is not a solution for the multiple-step transition matrix, you still can use the submodel: Calc Net Transition Rates (See online store). Regardless matrix ergodicity, this functor calculates gross transition rates for a time-period and specified number of time-steps and then derives the matrix of mean net transition rates. Output transition matrix is an approximation of the multiple-step transition matrix at the order of 0.1% (for most cases) and thus can be used as input for multiple-step land change simulations. Or you can calculate fixed gross rate per time step (e.g. year) by dividing the accumulated change over the period by the number of steps over which the period is composed. Dinamica EGO converts gross rates into net rate, dividing the extent of change by the fraction of each land use and cover class prior to change, before passing it to the transition functors: Patcher and Expander.

Open the model determine_transition_matrix.egoml located in \Guidebook_Dinamica_5\Models\LUCC_model\1_transition_matrix_calculation

This model calculates the single-step and multiple step matrices.

Open the functor Determine Transition Matrix with the Edit Functor Ports.

Note that Load Categorical Map 2367_1997.ers connects to the Initial Landscape port and the 23267_2000.tif to the Final Landscape. Check the number of time steps. In this case “3”, therefore, you want to determine the multi-step matrix per annual steps (2000 – 1997 = 3 years).

Set Register viewer on in the output ports and run the model. Open the resulting matrices by clicking with the right button on the output ports. Is this what you got?

You can also see the model results in the window message. You just need to browse it back.

Single Step Transition Matrix:

The only transition occurring is from forest (2) to deforested (1). The rates indicate that a percent of the forest is changing to deforested per unit time step, which is 3 years for the first matrix and 1 year for the latter. Thus, within this time-period deforestation is occurring at a net rate of 2.8% per year, which means that the remaining forest is shrinking 2.8% per year. Bear in mind that like interest rates, transition rates are superimposed again and again over the stock variable, which in this case is represented by the extent of remaining forest.
The net transition matrix is passed to the simulation model and Dinamica EGO browses the landscape (land use and cover) map to count the number of cells to calculate the gross rate in terms of quantity of cells to be changed. In order to set a constant gross rate you will need to pass a variable net rate to the model, which is also possible due to the ability of Dinamica EGO to incorporate feedback into the simulation. Let’s move on to the next step.

The Weights of Evidence method (Goodacre et al. 1993, Bonham-Carter 1994) is applied in Dinamica EGO to produce a transition probability map (fig. 3), which depicts the most favorable areas for a change (Soares-Filho et al. 2002, 2004).

Weights of Evidence consists of a Bayesian method, in which the effect of a spatial variable on a transition is calculated independently of a combined solution. The Weights of Evidence represent each variable’s influence on the spatial probability of a transition i-j and are calculated as follows.

(2)

(3)

Where W+ is the Weight of Evidence of occurring event D, given a spatial pattern B. The post-probability of a transition i j, given a set of spatial data (B, C, D,… N), is expressed as follows:

(4)

Where B, C, D, and N are the values of k spatial variables that are measured at location x,y and represented by its weights W+N

Fig.3 Calculation and application of Weights of Evidence to produce a transition probability map.

Since Weights of Evidence only applies to categorical data, it is necessary to categorize continuous gray-tone maps (quantitative data, such as distance maps, elevation, and slope). A key issue to any categorization process concerns the preservation of the data structure. The present method adapted from Agterberg & Bonham-Carter (1990), calculates ranges according to the data structure by first establishing a minimum delta – specified as the increment in the graphical interface – (Dx) for a continuous gray-tone variable x that is used to build n incremental buffers (Nx) comprising intervals from Xminimum to Xminimum + nDx.Each n defines a threshold that divides the map into two classes: (Nx) and (Nx2). An is the number of cells for a buffer (Nx) multiple of n and dn is the number of occurrences for the modeled event (D) within this buffer. The quantities An and dn are obtained for an ordered sequence of buffers N(xminimum + nDx). Subsequently, values of W+ for each buffer are calculated using equations 2 to 4. A sequence of quantities An is plotted against An*exp(W+). Thereafter breaking points for this graph are determined by applying a line-generalizing algorithm (Intergraph, 1991) that contains three parameters: 1) minimum distance interval along x, mindx, 2) maximum distance interval along x, maxdx, and 3) tolerance angle ft. For dx (a distance between two points along x) between mindx and maxdx, a new breaking point is placed whenever dx >= maxdx (an angle between v and v’- vectors linking the current to the last point and the last point to its antecedent, respectively) exceeds the tolerance angle ft. Thus, the number of ranges decreases as a function of ft. The ranges are finally defined by linking the breaking points with straight lines. Note that An is practically error-free whereas dn is subject to a considerable amount of uncertainty because it is regarded as the realization of a random variable. Since small An can generate noisy values for W+, Goodacre et al. (1993) suggest that, instead of calculating it employing equations 2 and 4, one should estimate W+ for each defined range through the following expression:

(5)

where Yn=An*exp(W+) and k represents the breakpoints defined for the n increments of Dx (Fig.4):

Fig.4 Plot of An against for the variable “distance to all roads”

The best-fitting curve can be approximated by a series of straight-line segments using a line-generalizing algorithm as explained in the text. This approach is used to define the breaking points for this curve and subsequently category intervals for a continuous variable (b).







Now, open the model determine_weights_of_evidence_ranges.egoml located in \Guidebook_Dinamica_5\Models\LUCC_model\2_weights_of_evidence_ranges_calculation.

This model calculates ranges in order to categorize continuous gray-tone variables for deriving the Weights of Evidence. It selects the number of intervals and their buffer sizes aiming to better preserve the data structure. See the help for a further description of this method. As a result, its output is used as input for the calculation of Weights of Evidence coefficients.

In addition to the initial and final landscape maps, this model receives a raster cube composed of a series of static maps, e.g. vegetation, soil, altitude (they are named so because they do not change during model iteration. A raster cube encompasses a set of co-registered map layers. Open the file 23267statics.ers from \Guidebook_Dinamica_5\Database\LUCC_files on the Map Viewer. An option to select the layer will appear on the Maps (right of window). Change the layer to examine the other maps.

Furthermore, Dinamica EGO can incorporate dynamic layers into the simulation, which are so-called because they are updated during model iteration. For this model you will include the variable “distance to previously deforested areas” as a dynamic map. For this purpose, the model employs the functor Calc Distance Map. Open it with the Edit Functor Ports.

This functor receives as input a categorical map, in this case the landscape map. Click now on the Categories port. This functor generates a map of frontage distance (nearest distance) from the cells of each map class of category defined by the user. In this case class “1” represents deforested land. Thus, the model takes into account the proximity of the previously deforested land on the probability of new deforestation. Now open the container Determine Weights Of Evidence Ranges clicking on the icon on its top left side.

Instead of Number Map, now you find Name Map within this container. This functor is applied to containers that need a map name or alias to identify the maps passed to them. Name Map is found in the Create Hook into container action bar. This can be any name, but you must be consistent, therefore using the same names when setting the container internal parameters, as shown below. Examples of containers that need Name Map are Determine Weights Of Evidence Ranges, Determine Weights Of Evidence Coefficients, and Calc W. Of E. Probability Map.

There are two Name Map functors within this container, one for the map 23267statitcs.tif and another for the distance map output from the Calc Distance Map.

Now open Determine Weights Of Evidence Ranges with the Edit Functor. Resize the window as follows:

Note that Name Map “distance” has layer named “distance_to_1” and “static_var” has a series of layers, each one representing a cartographic variable.

The raster cube contains the layers altitude, “d_all_roads” (in this examples, d means distance), “d_major_rivers”, “d_paved_roads”, “d_settlement”, “d_trans_rivers”, “protected_areas”, “slope”, “urban_attraction” (a potential interaction map), and “vegetation”.

Protected areas, vegetation and soil are already categorical data, thus mark them as such. The others will need to be categorized. The parameters for the categorization process are the increment – the map unit minimum buffer increment, e.g. in meters or degrees the minimum and maximum deltas representing intervals on the Y axis of the graphs in fig.4, and the tolerance angle, which measures the angle of deviation from a straight line. Some default values are suggested. The output of this functor will be a Weights of Evidence skeleton file, showing the categorization ranges, but with all weights set to zero. Run the model and open the output file with a text editor.

Example of Skeleton structure for Weights of Evidence

The first line contains the ranges and the second the transition and their respectively Weights of Evidence coefficients, which are still set to zero.





Although the mathematical fundamentals of this module may be a little hard to grasp at the first sight, it provides an easy means to handle models with multi-states and transitions. Let’s move on to the Weights of Evidence calculation.

Open the model determine_weights_of_evidence_coefficients.egoml located in \Guidebook_Dinamica_5\Models\LUCC_model\3_weights_of_evidence_coefficient_calculation.

The same dataset of the previous step is applied again, plus the WEOFE skeleton, which is loaded through the Load Weights functor located in the input/output tab. There is no parameter to set in the Determine Weights Of Evidence Coefficients functor, you only need to set the proper links as follows.

As well as the input maps:

Maximize the log window and run the model, let’s analyze the results for variable “distance_to_1”.

The first column shows the ranges, the second the buffer size in cells, the third the number of transitions occurring within each buffer, the fourth the obtained coefficients, the fifth the Contrast measure and the last the result for the statistical significance test. Go to help for further details.

Notice that the first ranges show a positive association, favoring deforestation, especially the first, in contrast, the final ranges show negative values, thus repelling deforestation. The middle range shows values close to zero, meaning that these distance ranges do not exert an effect on deforestation.

The Contrast measures the association/repelling effect. Near zero, there is no effect at all, while the larger and more positive it becomes, the greater is the attraction; on the other hand, the larger and more negative the value, the greater is the repelling effect.

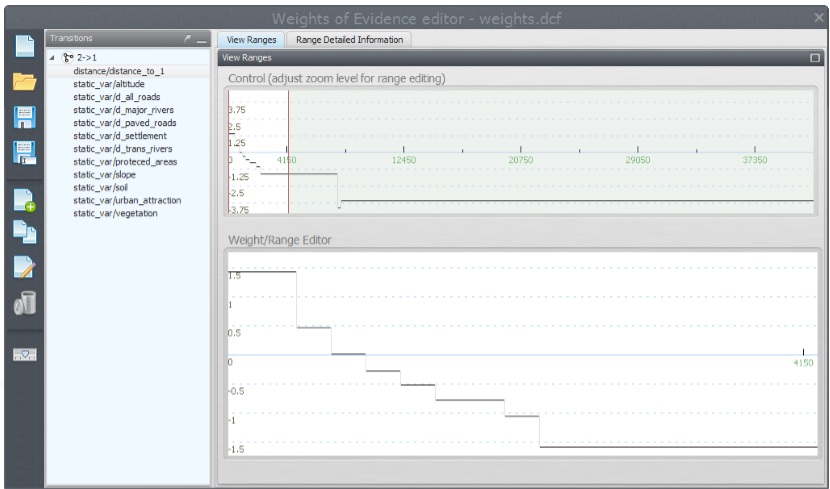

Now open the graphical Weights of Evidence editor within the Save Weights functor (eye icon).

You can graphically edit the Weights of Evidence coefficients and also get a view of a continuous Weights of Evidence function, clicking on the bird view button. Notice how deforestation likelihood varies as a function of distance to previously deforested areas.

The only assumption for the Weights of Evidence method is that the input maps have to be spatially independent. A set of measures can be applied to assess this assumption, such as the Cramer test and the Joint-Uncertainty Information (Bonham-Carter, 1994). As a result, correlated variables must be disregarded or combined into a third that will replace the correlated pair in the model.

Open model weights_of_evidence_correlation.egoml in \Guidebook_Dinamica_5\Models\LUCC_model\4_weights_of_evidence_correlation.

The model in 3_and_2_weights_of_evidence_ranges_and_coefficient_calculation corresponds to steps 2 and 3 joined together.

This model performs pairwise tests for categorical maps in order to test the independence assumption. Methods employed are the Chi^2, Cramer, the Contingency, the Entropy and the Uncertainty Joint Information (Bonham-Carter, 1994). In addition to the links to be connected, the only parameter to be set in the Determine Weights of Evidence Correlation is the transition as follows:

Before running the model, maximize the log window. This is a part of the log reported:

Let’s check for correlated pairs of maps. The following pair draws our attention:

Although there is no agreement on what threshold should be used to exclude a variable, all tests highlight a high correlation for this pair of variables. Hence you must exclude one of these. Let’s remove “d_major_rivers”. Delete the variable from the Weights of Evidence file using its graphical editor. Open it on the Load Weights using the eye icon.

Now save the WEOFE coefficients as new_weights.dcf in the folder \Guidebook_Dinamica_5\Models\LUCC_model\4_weights_of_evidence_correlation.

Great, you have come through the calibration process, now you can start setting up the simulation model. Let’s move forward.

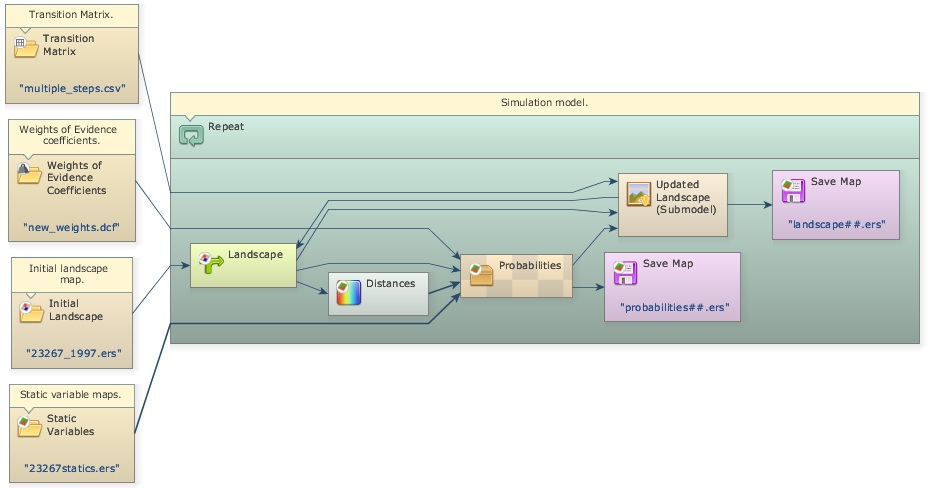

Let’s start setting up the deforestation simulation model by loading the input data. You will need Load Categorical Map to load the initial landscape: originals/23267_1997.ers, Load Map for originals/23267statics.ers, Load Weights for new_weights.dcf, and Load Lookup Table for the multi-step transition matrix: originals/multiple_steps.csv because you will run the model in annual time-steps. Add the following comments to each functor:

Now, drag a Repeat, and place within it one Calc Distance Map, one Mux Categorical Map from Control tab, one Calc W. Of E. Probability Map and one Save Map. Also place two Name Map functors within Calc W. Of E. Probability Map. Rename them with the same alias as the second and third steps. Open the Save Map and write probabilities.ers in the folder \5_run_lucc. Leave the option Suffix Digits = “2”.

Drag a Calc Change Matrix from Simulation tab within Repeat. Now let’s connect the functors: first Load Categorical Map 23267_1997.ers to the Initial port of the Mux Categorical Map, the output from this to Calc Distance Map, Calc Change Matrix and Calc W. Of E. Probability Map. Connect Load Table multiple_steps.csv to Calc Change Matrix, Load Map 23267statics.ers to Name Map “static_var”, the output from Calc Distance Map to Name Map “distance”, Load Weights new_weigths.dcf to Calc W. Of E. Probability Map and its output to Save Map probabities.ers (Note that this map will receive a ## suffix from the model iteration).

Now place two additional functors, Patcher from the Simulation tab and another Save Map. Enter Landscape.ers and leave “2” as Suffix. Connect the output from Mux Categorical Map to the Patcher Landscape port, the output from Calc W. Of E. Probability Map to the Patcher Probabilities port, and the output from Calc Change Matrix to the Changes port of the Patcher.

To close the loop you will need to connect the output port Changed Landscape of Patcher to the port Feedback of Mux Categorical Map and to Save Map Landscape.ers to save the maps from model execution.

The functor Mux Categorical Map enables dynamic update of the input landscape map. It receives the Load Categorical Map 23267_1997.ers in its Initial port in the beginning of the simulation and thereafter the map output from Patcher via the Feedback port.

The functor Calc W. Of E. Probability Map calculates a transition probability map for each specified transition by summing the Weights of Evidence, using equation 4.

In turn, the Calc Change Matrix receives the transition matrix, composed of net rates, and uses it to calculate crude rates in terms of quantity of cells to be changed by multiplying the transition rates by the number of cells available for a specific change.

Let’s set the other functors’ parameters. Open Calc Distance Map and enter “1”. Remember that you want “distance_to_1” (deforested areas). Open Calc W. Of E. Probability Map and enter transition “2 to 1”, which represents deforestation. Finally open Repeat and set the Number of Iterations to “3”, as you will run the model in annual time steps. The model should now look like this:

Dinamica EGO uses as a local Cellular Automata rule a transition engine composed of two complementary transition functions, the Expander and the Patcher, especially designed to reproduce the spatial patterns of change (both are found in the Simulation tab). The first process is dedicated only to the expansion or contraction of previous patches of a certain class, while the second process is designed to generate or form new patches through a seeding mechanism. The Patcher searches for cells around a chosen location for a joint transition. The process is started by selecting the core cell of the new patch and then selecting a specific number of cells around the core cell, according to their P_ij transition probabilities.

By varying their input parameters, these functions enable the formation of a variety of sizes and shapes of patches of change. The Patch Isometry varies from 0 to 2. The patches assume a more isometric form as this number increases. The sizes of change patches are set according to a lognormal probability distribution. Therefore, it is necessary to specify the parameters of this distribution represented by the mean and variance of the patch sizes to be formed. Open this functor with the Edit Functor and enter its parameters as follows (leaving the others untouched):

Since the input map resolution is approximately 250 meters, setting the Mean Patch and Patch Size Variance to “1” won’t allow the formation of patches.

Finally verify the model and run it. Check the log reported and open the maps probabilities3.ers using “PseudoColor” and landscape3.ers using “Amazon” Color Palette on the Map Viewer.

Observe the high probability areas for deforestation and compare the simulated map landscape3.ers with the final landscape 23267_2000.tif. Do they resemble each other? In order to perform a quantitative comparison, let’s move on to the next step.

Spatial models require a comparison within a neighborhood context, because even maps that do not match exactly cell-by-cell could still present similar spatial patterns and likewise spatial agreement within a certain cell vicinity. To address this issue several vicinity-based comparison methods have been developed. For example, Costanza (1989) introduced the multiple resolution fitting procedure that compares a map fit within increasing window sizes. Pontius (2002) presented a method similar to Costanza (1989) that differentiates errors due to location and quantity. Power et al. (2001) provided a comparison method based on hierarchical fuzzy pattern matching. In turn, Hagen (2003) developed new metrics, including the Kfuzzy, considered to be equivalent to the Kappa statistic, and the fuzzy similarity which takes into account the fuzziness of location and category within a cell neighborhood.

The method we apply here is a modification of the latter and named in Dinamica EGO as Calc Reciprocal Similarity Map. This method employs an exponential decay function with distance to weight the cell state distribution around a central cell (See scheme in fig. 5 about the Fuzzy comparison method and then go to Help for further details on this method).

Open the model determine-similarity-of-differences.egoml in \Guidebook_Dinamica_5\Models\LUCC_model\6_validate_using_exponential_decay_function.

As inputs, the model receives the initial and final landscapes, and the final simulated landscape. Because simulated maps inherit the spatial patterns of the initial landscape map, to remove this inheritance, the Similarities submodel evaluates the spatial fit between maps of changes.

This operator calculates the map of differences between a initial map (first one of a time series) and an observed map (last one of a time series) and the differences between a initial map and a simulated map (the simulated one corresponding to the observed map).

Therefore, the resulting map only depicts the cells that have changed. These maps of differences are used by Calc Reciprocal Similarity Map to calculate a two-way similarity, from the first map to the second and from the second to the first. It is advisable to always choose the smaller similarity value since random maps tend to produce an artificially high fit when compared univocally, because they spread the changes all over the map.

This test employs an exponential decay function truncated outside of a window size 11×11.

Fig.5 Fuzzy comparison method using map of differences and an exponential decay function. The same process applies to constant decay function, in which all window weights are set to 1.

Open the Similarities Submodel with Edit Functor. The three parameters to set are the Window Size, the Use Exponential Decay and the Print Similarities.

The minimum similarity map corresponds to the similarity obtained by comparing the simulated changes against the actual ones.

Visualize now the resulting similarity map by opening it on the Map Viewer. Use PseudoColor, Limits to Actual, and Histogram Equalize.

The red and yellow areas show high to moderate spatial fit, whereas blue indicates poor fit.

Another way to measure the spatial fitness between two maps is by means of multiple window similarity analysis. This method employs a constant decay function within a variable window size. If the same number of cells of change is found within the window, the fit will be 1 no matter their locations. This represents a convenient way to assess model fitness through decreasing spatial resolution. Models that do not match well at high resolution may have an appropriate fit at a lower resolution. Let’s develop a multiple resolution fitness comparison in the next step.

Open the model determine-muti-window-similarity-of-differences_complete.egoml in folder \Guidebook_Dinamica_5\Models\LUCC_model\7_validate_using_multiple_windows_constant_decay_function.

The first part of this model is similar to the previous one. Two Calculate Map functors are employed to derive the maps of changes. Now open the For functor. Let’s examine its contents in detail.

At the center is located a Calc Reciprocal Similarity Map. Open it with the Edit Functor. Note that the option Use Exponential Decay is off, what means that a constant decay function is being used.

Click on the link between this functor and Step with the Edit Functors Port.

The Step coming from the enveloping For is controlling the Window Size. For is a particular case of Repeat, in which initial and final steps as well as the step increment can be defined as follows:

In this For container, step goes from 1 to 11 by an increment of two. This is necessary because Window Size must be odd numbers. As a result Window Size will vary from 1×1, to 3×3, 5×5, 7×7, 9×9, and 11×11.

Similar to lesson 2, Mux Table is employed to update the table containing the minimum and maximum similarity means of window sizes. Open Group containing the functors that update these tables.

Calculate Value selects the minimum fitness value (formula applied is min(v1, v2)) and passes it to Set Table Cell Value, which also receives as input the current step as the table key.

As the For iterates, the Calc Reciprocal Similarity Map calculates similarity values for a window size and passes them to Calculate Value:, which selects the minimum and passes it on to Set Table Cell Value, which updates the value for the table key corresponding to the model step. A second Set Table Cell Value updates the maximum similarity and feedbacks the updated table to Mux Table. When For is finished, the table is passed to Save Table.

Register viewer on the Result port of Set Table Cell Value, run the model and analyze the resulting table by clicking on Result port with the right button.

The fitness goes from 21% at 1 by 1 cell to 90% at 11 by 11 cell resolution. Because the simulation receives as input a fixed transition matrix setting the quantity of changes, we only need to assess the model fitness with respect to the location of changes. Taking into account that cell resolution is 250 meters and the window search radius is half of the resolution, you can draw a graph depicting model fitness per spatial resolution.

Fig.6 Model fitness

From the graph in fig. 6, we can assert that the simulation reached a similarity fitness value over 50% at a spatial resolution of ˜800 meters.

Now that the validation phase is completed, you can start playing with the simulation model parameters to explore possible outcomes. Let’s do it in the next step.

Before going through this step, open and read the file simulating_the_spatial_patterns_of_change.pdf in Examples\patterns_of_change. This paper presents and discusses the results of a series of simulations using simplified synthetic maps and varying the parameters of the transition functions. The simulation results are evaluated using selected landscape structure metrics, such as fractal dimension, patch cohesion index, and nearest neighbor distance. These simulation examples are used to show how these functions can be calibrated, as well as its potential to replicate the evolving spatial patterns of a variety of dynamic phenomena (Soares-Filho et al., 2003). You can also examine these models available in Examples\patterns_of_change.

This step aims at analyzing the parameters of the Patcher transition function on the structure of the simulated landscape. Open the model simulate_deforestation_from_1997_2000_ with_patch_formation from Examples\setup_run_and_validate_a_lucc_model\8_run_lucc_ with_patch_formation. This is the same model as the one in the fifth step.

Now open Patcher with the Edit Functor tool.

Mean Patch Size is set to 25 ha, Patch Size Variance to 50 ha, and Patch isometry to 1.5. Since cell size is equal to 6.25 hectares (250 x 250 meters), the patches to be formed will have in average 4 cells and a variance of 8 cells.

Run the model; open both landscape3.ers files from this model and from the fifth step as well as 23267_2000.ers for visual comparison.

                           5th  Step---------------------------------------------- 23267_2000 ----------------------------------------------This Step

Note that the simulated landscape from this step shows a landscape structure closer to that of the final historical landscape. Let’s now add the Expander Functor to the simulation model.

The Expander functor is dedicated only to the expansion or contraction of previous patches of a certain class. Thus in the Expander, a new P_ij spatial transition probability depends on the amount of cells type j around a cell type i, as depicted in fig. 7.

Fig.7 Transition probabilities transformed to simulate expansion process.

Now, open the model simulate_deforestation_from_1997_2000_with_patch_formation_and_expansion.egoml in the folder \Guidebook_Dinamica_5\Models\LUCC_model\9_run_lucc_with_patch_formation_and_expansion.

Percent of Transitions by Expansion, Patch Expansion Parameters and Patch Generation Parameters can be set by editing the Allocate Transitions functor

Now run the model, access the log for the report, and compare its output with the previous ones.

8thStep—————————————————————————9th Step—————————————————————-23367_2000

Did this model approximate more closely to the structure of the final historical landscape?

Try to change the parameters of Modulate Change Matrix, Expander and Patcher to see what you get.

Simulation models can be envisaged as a heuristic device useful for assessing, from short to long terms, the outcomes from a variety of scenarios, translated as different socioeconomic, political, and environmental frameworks. A special class among them, spatially explicit models simulate the dynamics of an environmental system, reproducing the way its spatial patterns evolve, to project the probable ecological and socioeconomic consequences from the system dynamics.

Thus, as the current example, we can apply the simulation model to assess the impacts of future trajectories of deforestation under various socioeconomic and public policies scenarios, on the emission of greenhouse gases (Soares-Filho et al., 2006), regional climate change (Schneider et al., 2006; Sampaio et al, 2007), fluvial regime (Costa et al, 2003,Coe et al, 2009), habitat loss and fragmentation(Soares-Filho et al., 2006, Texeira et al., 2009) as well as the loss of the forest environmental services and economic goods (Fearnside, 1997).

Open the model simulate_deforestation_from_1997_2000_30years_ahead.xml available in \Guidebook_Dinamica_5\Models\LUCC_model\10_run_deforestation_trajectories.

The only differences between this model and the prior one consist of the initial landscape, which is now the 2000 map, the number of iterations set to “30”.

As this model uses fixed transition rates, we can consider that it projects the historical trend into the future, thus named as the historical trend scenario.

Run the model and open the landscape2030.ers.

This is what you get:

Note that the forest virtually disappears outside of protected areas, which begin to be encroached. This is what will happen if the recent historical deforestation trend persists into the future.

Animated maps are a very powerful tool to make the general public aware of the possible outcomes of system dynamics, such as the Amazon deforestation. Go to our movie maker tutorial to learn how to do it.

You may want to improve this model by incorporating dynamic rates, other dynamic variables, submodels, such as the road constructor, and feedbacks from the landscape attributes to the transition rate calculation. All of these are possible in Dinamica EGO. An example of road constructor module is found in the model mato_grosso_road.xml in Examples\run_lucc_northern_mato_grosso\run_roads_with_comments. Also, Dinamica EGO allows the incorporation of economic, social and political scenarios into a model that integrates the effect of these underlying causes (Geist, & Lambin, 2001) on the trajectory of deforestation (usually these variables are input to the model using tables with keys assigned to a geographic unit, such as county, state or country).
